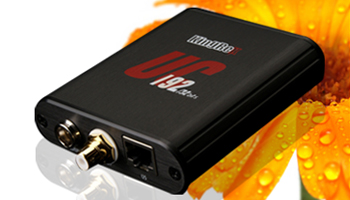

KingRex UC192 USB to S/Pdif Converter

KingRex UC192 USB to S/PDIF digital to digital converter feature: KingRex UC192 is very high quality CAT (computer audio transport) interface for CAT fans and audiophile who would like stream out their high resolution playback. UC192 is capable of flawlessly transfer high resolution & high quality audio playback by PC & MAC from 44.1KHz/16bit to 192KHz/32bit through its S/PDIF & IIS digital output to virtually every DAC (digital to analog converter) or A/V receiver around by its comprehensive output sets. It will help every audiophile easily upgraded their Hi-Fi system direct to the playable PC world. KingRex supports proprietary drivers for Windows & Mac. The Kernal Streaming, Direct Sound, ASIO4ALL and WASAPI will operate smoothly and perfectly. KingRex UC192 placed in aluminum case w/ black hair brash polish. Size: 88＊82＊24mm(L＊W＊H)

- USB 2.0 High/Full Speed compliant
- USB 2.0 High Speed PHY Integrated
- USB Audio Device Class Specification v1.0/2.0 Compliant
- Alternative Zero Bandwidth Setting to Save USB Bus Bandwidth while Device in Idle State
- Adaptive Clock Generator for Audio Streaming Synchronization
- Supports CRC Error Correction for Playback Data. I2C interface:
- Supports Wait status
- Up to 400 kb/s Data Transfer Rate IIS audio interface:
- Support IIS Master Mode
- Support IIS Slave Mode when Feedback Enabled.
- Sample Rates Supported: 8Khz, 16Khz, 32Khz, 44.1Khz, 48Khz, 88.2Khz, 96Khz, 176.4Khz, &192Khz
- Bit Rates Supported: 16bit, 20bit, 24bit, 32bit SPDIF Interface:
- 1 Stereo SPDIF output through Integrated IEC958 Line Driver
- 16,20, 24bit Mono/2 Channel
- Sample rates support : 32Khz, 44.1Khz, 48Khz, 88.2Khz, 96Khz. & 192K.
* Integrated World Clock, Including PLL
* Adding 1PPM TXCO for decreasing the jitter
